Flagship · Digital height gauge

Height Master Digital Height Gauge

Premium metrology. Accessible price. — Trimos-class software, manual precision

Height Master is a manual vertical measuring system with an integrated tablet running Metriflux VECTOR V1. Cast-iron base, air-bearing guidance, ISO 13225-grade accuracy, and a full kit — without imported height-gauge pricing.

Request DemoOperator guide
MetriFlux Height Master digital height gauge HM-500 HM-600 HM-700 with integrated tablet

Metriflux VECTOR V1

Software that thinks in microns

Standalone tablet software with ProbeSense AutoReverse, lateral-sweep flatness, part programs, auto-capture, and pass/fail reporting — comparable to premium imported height-gauge workflows.

Integrated Tablet UI

Core

VECTOR V1 runs on the instrument display — live Z-axis readout, min/max/TIR telemetry, datum zero/preset, and five saved reference slots. No shop PC required.

ProbeSense AutoReverse

Diameter

Smart-reversal diameter capture for ID and OD — lateral sweeps with pole-contact detection and audio tick at reversal. Under the hood: probe ball compensation (±2r) on every size-critical mode.

14 Measurement Modes

Modes

Height, ID/OD, concentricity, distance, groove, notch, perpendicularity, flatness, runout, steps, taper, 2D bore, and Scratch for setup — all on the LIVE tab today.

High-Speed Flatness Scan

Scan

2,000 points per second for flatness and TIR — continuous lateral sweeps with max-Z minus min-Z reporting. Perpendicularity and radial runout use the same sweep engine.

Part Programs (PROG)

Programs

Define reusable inspection sequences with drawing nominals and tolerances. Run step-through with automatic pass/fail, serial/lot tracking, and PDF run reports.

Auto-Capture & Stability Gate

Capture

SETTLED lamp confirms Z within ±0.01 mm for 400 ms before capture. Optional taught auto-capture profile learns your machine's approach signature for hands-free contact.

LOG History & Export

Export

Ad-hoc and program-run history with filters, pass/fail status, and row selection. Export selected rows to CSV (SPC), Excel, or branded PDF inspection reports.

Calibration Wizards

Cal

Built-in probe ball radius, linear Z-scale, wedge span, and max-travel calibrations — ring gauge, step gauge, or gauge block methods on your granite plate.

Metriflux VECTOR V1

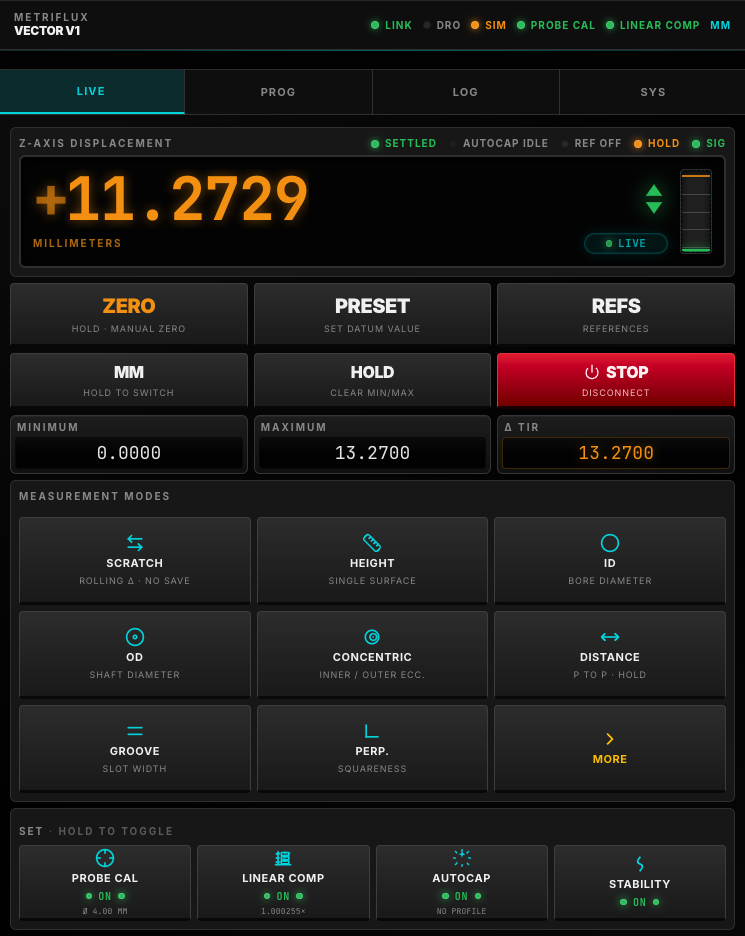

Metriflux VECTOR V1 interface showing Z-axis displacement readout and measurement modes

Measurement modes

Fourteen routines. One interface.

From single-surface height to 2D bore patterns — every mode in VECTOR V1, purpose-built for precision inspection.

SCRATCH

Rolling Δ · setup

HEIGHT

Single surface

ID

Bore diameter

OD

Shaft diameter

CONCENTRIC

Inner / outer ecc.

DISTANCE

P to P · hold

GROOVE

Slot width

NOTCH

Lug width

PERP.

Squareness

FLATNESS

Surface TIR

RUNOUT

Rotation TIR

STEPS

Chain height

TAPER

Wedge angle check

2D BORE

Hole pattern

VECTOR V1 operator guide →

Models

Three ranges. One platform.

Choose 500, 600, or 700 mm measuring range. All models share the same manual carriage, integrated tablet, and VECTOR V1 software.

ModelMeasuring rangeFrontal squarenessBMPE
HM-500500 mm8 µm2.5 + L/400 µm
HM-600600 mm10 µm2.5 + L/400 µm
HM-700700 mm12 µm2.5 + L/400 µm

Values determined per ISO 13225 with standard measuring insert. Accuracy 5 µm · resolution 0.001 mm. Manual carriage — measuring force is operator-dependent.

Manual precision height gauging with software comparable to imported systems — for QC labs, tool rooms, production lines, and purchasing teams across India.

Specifications

Engineered to the micron

Manual carriage on air bearings with integrated tablet — specifications validated per ISO 13225.

Accuracy

5 µm

BMPE

2.5 + L/400 µm

Resolution

0.001 mm

Range options

500 · 600 · 700 mm

Squareness

8–12 µm

Scan rate

2,000 pts/s

Carriage

Manual

Base

Cast iron · air bearings

Display

Integrated tablet

Connectivity

USB-C · Ethernet

Software

VECTOR V1

Standard

ISO 13225

Gallery

See the system

Product photography placeholders — replace files in public/images/products/ using the paths noted below each image.

Height Master on granite inspection table

On inspection table

Upload to: /images/products/height-master-on-table.png

Height Master standard probe and insert kit

Probe & insert kit

Upload to: /images/products/height-master-probe-kit.png

Height Master integrated tablet running VECTOR V1

Tablet interface

Upload to: /images/products/height-master-tablet.png

ISO traceable calibration certificate for Height Master

Calibration certificate

Upload to: /images/products/height-master-calibration.png

After purchase

Support that stays local

Every Height Master kit ships with training and a full year of remote assistance — plus warranty, AMC, and spare inserts when you need them.

1-year standard warranty

Annual maintenance contracts available

Spares in India

Probe inserts and consumables readily available in India

On-site training

1-day free on-site operator training included

Remote support

Unlimited remote technical support for 1 year

Applications

Where Height Master fits

Representative use cases across QC labs, tool rooms, production inspection, and purchasing — customer stories and field photos coming soon.

Automotive QC

Incoming inspection vs imported gauges

A Maharashtra automotive supplier evaluating Height Master against a European height gauge for shaft height and bore diameter checks on production samples.

Outcome: Comparable software workflow and repeatability at significantly lower total cost of ownership.

Placeholder — field story pending

Tool room

Die height verification on the shop floor

Tool-room technicians running chain-dimension and flatness routines on hardened blocks using VECTOR V1 part programs.

Outcome: Faster setup with ProbeSense AutoReverse and flatness scan replacing manual dial-indicator sweeps.

Placeholder — field story pending

Purchasing

Full-kit quote for a new QC lab

A procurement team comparing Trimos-class capability against Height Master for a greenfield inspection lab — hardware, software, training, and calibration in one line item.

Outcome: Introductory kit pricing with no separate software licence or probe upsell.

Placeholder — field story pending

Software licensing

Run VECTOR V1 on your existing height gauge

VECTOR V1 is available as a standalone shop-floor application — not only on Height Master. Connect any DRO with RS232 serial output to an Android tablet and run the same fourteen measurement modes, part programs, and export workflows.

Per-device licence from

₹20,000

Excludes GST. Pricing varies by deployment scope, device count, and OEM terms.

DRO interface

RS232 serial output (USB-serial adapter on tablet)

End-user integration

Upgrade an existing vertical measuring instrument

  • Android tablet APK — deploy on your approved shop-floor device
  • Connect via USB-serial to any compatible DRO with RS232 output
  • Configurable protocol, baud, parity, and Z-axis mapping in SYS → DRO
  • Full LIVE / PROG / LOG / SYS stack: 14 modes, part programs, CSV · Excel · PDF export
  • Per-tablet device activation — offline-validated licence codes
  • Probe calibration, linear compensation, auto-capture, and stability gate included

OEM & partner supply

Embed VECTOR V1 in your height gauge product line

  • OEM licence supply for gauge manufacturers and system integrators
  • White-label branding — company name, tagline, and logo on PDF reports (SYS → Admin)
  • APK deployment builds tailored to your tablet and cable harness
  • Volume licensing with per-device activation tied to hardware serials
  • Kiosk options: full-screen, screen-on, back guard, portrait lock for production floor
  • Technical integration support for DRO wiring, protocol selection, and factory setup
Contact us for a quote

Specify end-user integration or OEM partnership in your message. We will confirm DRO compatibility and deployment options.
